A couple of key things demonstrated:
- C++ (OCCI) Oracle database access
- Transparent Application Failover (TAF) notifications in C++ (OCCI)
- Building a C++ application with MQ and OCCI support
- Using makefile flags to build either with full or a "stub" database library class

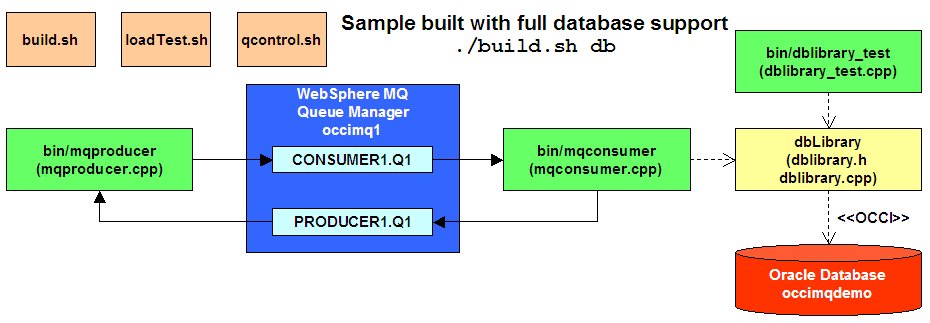

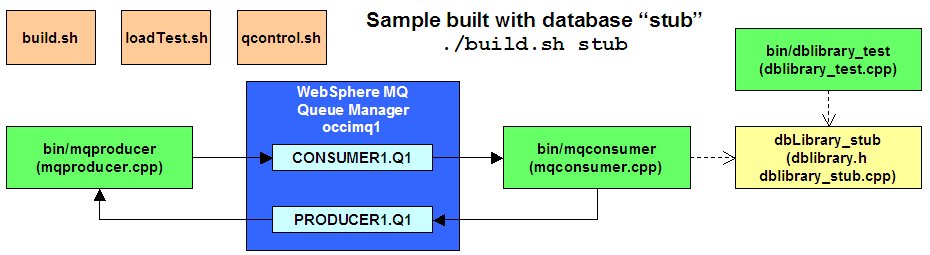

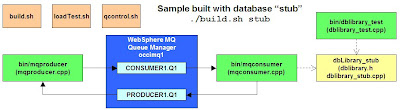

The diagrams below give a simple exposition of how the demo is structured. The executables "mqproducer" and "mqconsumer" are MQ clients shuttle messages back-and-forth via queues. For each message sent by "mqproducer", a reply is expected from "mqconsumer". The readme.txt in the archive contains fairly detailed coverage of how to run the demo.
If the sample is built with full database support, then a "dblibrary" is linked in that will persist each message to database (and the dblibrary_test program can be use to test the operation).
![](http://bp1.blogger.com/_AZh6c1pzK1A/Rmow9h8_7sI/AAAAAAAAAEY/RBJsLceXw5w/s400/occimqdemo-db.jpg)
![](http://bp0.blogger.com/_AZh6c1pzK1A/RmoxIR8_7tI/AAAAAAAAAEg/nSDxOVgVUU8/s400/occimqdemo-stub.jpg)
